CKS Online Practice Questions

A. Create psp to disallow privileged container
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: deny-access-role
rules:
- apiGroups: ['policy']
resources: ['podsecuritypolicies']
verbs: ['use']
resourceNames:
- “deny-policy”
k create sa psp-denial-sa -n development apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding
metadata:
name: restrict-access-bing roleRef:
kind: ClusterRole
name: deny-access-role
apiGroup: rbac.authorization.k8s.io subjects:
- kind: ServiceAccount name: psp-denial-sa
namespace: development
Explanation
master1 $ vim psp.yaml apiVersion: policy/v1beta1 kind: PodSecurityPolicy metadata:
name: deny-policy spec:
privileged: false # Don't allow privileged pods! seLinux:
rule: RunAsAny
supplementalGroups:
rule: RunAsAny
runAsUser:
rule: RunAsAny
fsGroup:
rule: RunAsAny
volumes:
- '*'
master1 $ vim cr1.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: deny-access-role
rules:
- apiGroups: ['policy']
resources: ['podsecuritypolicies']
verbs: ['use'] resourceNames: - “deny-policy”
master1 $ k create sa psp-denial-sa -n development
master1 $ vim cb1.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: restrict-access-bing
roleRef:
kind: ClusterRole
name: deny-access-role
apiGroup: rbac.authorization.k8s.io
subjects:
# Authorize specific service accounts: - kind: ServiceAccount
name: psp-denial-sa
namespace: development
master1 $ k apply -f psp.yaml
master1 $ k apply -f cr1.yaml
master1 $ k apply -f cb1.yaml
Reference: https://kubernetes.io/docs/concepts/policy/pod-security-policy/

A. Create a PSP that will prevent the creation of privileged pods in the namespace.
$ cat clusterrole-use-privileged.yaml
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: use-privileged-psp
rules:
- apiGroups: ['policy']
resources: ['podsecuritypolicies']
verbs: ['use']
resourceNames:
- default-psp
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding metadata:
name: privileged-role-bind
namespace: psp-test roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: use-privileged-psp subjects:
- kind: ServiceAccount
name: privileged-sa
$ kubectl -n psp-test apply -f clusterrole-use-privileged.yaml After a few moments, the privileged Pod should be created.
Create a new PodSecurityPolicy named prevent-privileged-policy which prevents the creation of privileged pods.
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
name: example
spec:
privileged: false # Don't allow privileged pods!
# The rest fills in some required fields. seLinux:
rule: RunAsAny supplementalGroups: rule: RunAsAny runAsUser:
rule: RunAsAny fsGroup:
rule: RunAsAny volumes:
- '*'
And create it with kubectl:
kubectl-admin create -f example-psp.yaml
Now, as the unprivileged user, try to create a simple pod:
kubectl-user create -f- <<EOF
apiVersion: v1
kind: Pod
metadata:
name: pause
spec:
containers:
- name: pause
image: k8s.gcr.io/pause
EOF
The output is similar to this:
Error from server (Forbidden): error when creating "STDIN": pods "pause" is forbidden: unable to validate against any pod security policy: []
Create a new ServiceAccount named psp-sa in the namespace default.
$ cat clusterrole-use-privileged.yaml
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: use-privileged-psp
rules:
- apiGroups: ['policy']
resources: ['podsecuritypolicies']
verbs: ['use']
resourceNames:
- default-psp
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding metadata:
name: privileged-role-bind
namespace: psp-test roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: use-privileged-psp subjects:
- kind: ServiceAccount
name: privileged-sa
$ kubectl -n psp-test apply -f clusterrole-use-privileged.yaml After a few moments, the privileged Pod should be created.
Create a new ClusterRole named prevent-role, which uses the newly created Pod Security Policy prevent-privileged-policy.
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
name: example
spec:
privileged: false # Don't allow privileged pods!
# The rest fills in some required fields. seLinux:
rule: RunAsAny supplementalGroups: rule: RunAsAny runAsUser:
rule: RunAsAny fsGroup:
rule: RunAsAny volumes:
- '*'
And create it with kubectl:
kubectl-admin create -f example-psp.yaml
Now, as the unprivileged user, try to create a simple pod:
kubectl-user create -f- <<EOF
apiVersion: v1
kind: Pod
metadata:
name: pause
spec:
containers:
- name: pause
image: k8s.gcr.io/pause
EOF
The output is similar to this:
Error from server (Forbidden): error when creating "STDIN": pods "pause" is forbidden: unable to validate against any pod security policy: []
Create a new ClusterRoleBinding named prevent-role-binding, which binds the created ClusterRole prevent-role to the created SA psp-sa.
apiVersion: rbac.authorization.k8s.io/v1
# This role binding allows "jane" to read pods in the "default" namespace.
# You need to already have a Role named "pod-reader" in that namespace. kind: RoleBinding metadata:
name: read-pods
namespace: default subjects:
# You can specify more than one "subject"
- kind: User
name: jane # "name" is case sensitive
apiGroup: rbac.authorization.k8s.io
roleRef:
# "roleRef" specifies the binding to a Role / ClusterRole kind: Role #this must be Role or ClusterRole name: pod-reader # this must match the name of the Role or ClusterRole you wish to bind to apiGroup: rbac.authorization.k8s.io
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
namespace: default
name: pod-reader
rules:
- apiGroups: [""] # "" indicates the core API group
resources: ["pods"]
verbs: ["get", "watch", "list"]

A. apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
name: network-policy
spec:
podSelector: {} #selects all the pods in the namespace deployed policyTypes:
- Ingress ingress:
- ports: #in input traffic allowed only through 80 port only
- protocol: TCP
port: 80

A. 1) Connect to the correct host ssh cks000m40
sudo -i
export KUBECONFIG=/etc/kubernetes/admin.conf
2) Verify namespace exists (quick check)
kubectl get ns clever-cactus
3) Verify certificate and key files exist
ls -l /home/candidate/clever-cactus/web.k8s.local.crt
ls -l /home/candidate/clever-cactus/web.k8s.local.key
Both files must exist.
4) Create the TLS Secret (THIS IS THE MAIN TASK)
Create a TLS Secret named clever-cactus in namespace clever-cactus:
kubectl -n clever-cactus create secret tls clever-cactus \
--cert=/home/candidate/clever-cactus/web.k8s.local.crt \
--key=/home/candidate/clever-cactus/web.k8s.local.key
⚠️ Do NOT use apply
⚠️ Do NOT edit the Deployment
5) Verify the Secret
kubectl -n clever-cactus get secret clever-cactus
Expected type:
kubernetes.io/tls
Optional detail check:
kubectl -n clever-cactus describe secret clever-cactus
You should see:
tls.crt
tls.key
6) (Optional) Confirm Pods are running
Since the Deployment is already configured to use the Secret, Pods should now work.
kubectl -n clever-cactus get pods

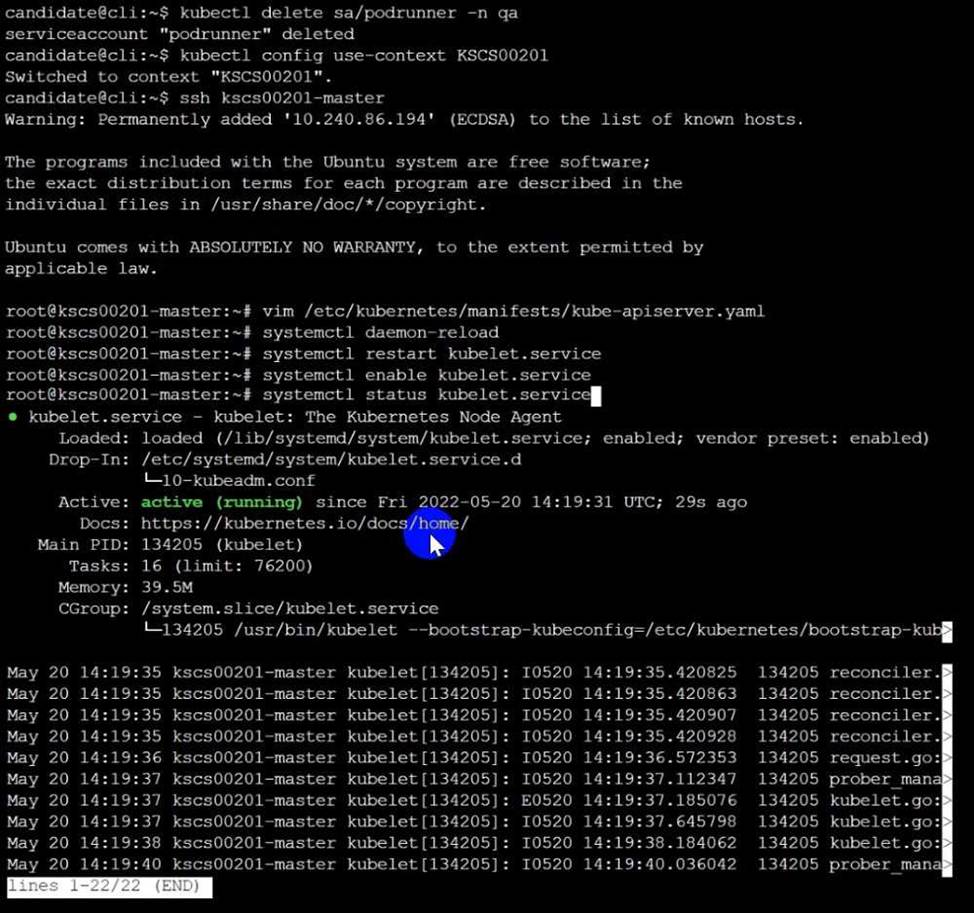

A. API server:
✑ Ensure the --authorization-mode argument includes RBAC
Turn on Role Based Access Control.Role Based Access Control (RBAC) allows fine-grained control over the operations that different entities can perform on different objects in the cluster. It is recommended to use the RBAC authorization mode. Fix - BuildtimeKubernetesapiVersion: v1
kind: Pod
metadata:
creationTimestamp: null
labels:
component: kube-apiserver
tier: control-plane
name:kube-apiserver
namespace: kube-system
spec:
containers:
-command:
+ - kube-apiserver
+ - --authorization-mode=RBAC,Node
image: gcr.io/google_containers/kube-apiserver-amd64:v1.6.0
livenessProbe:
failureThreshold:8
httpGet:
host:127.0.0.1
path: /healthz
port:6443
scheme: HTTPS
initialDelaySeconds:15
timeoutSeconds:15
name: kube-apiserver-should-pass
resources:
requests:
cpu: 250m
volumeMounts:
-mountPath: /etc/kubernetes/
name: k8s
readOnly:true
-mountPath: /etc/ssl/certs
name: certs
-mountPath: /etc/pki
name: pki
hostNetwork:true
volumes:
-hostPath:
path: /etc/kubernetes
name: k8s
-hostPath:
path: /etc/ssl/certs
name: certs
-hostPath:
path: /etc/pki
name: pki
✑ Ensure the --authorization-mode argument includes Node
Remediation: Edit the API server pod specification file /etc/kubernetes/manifests/kube-apiserver.yaml on the master node and set the --authorization-mode parameter to a value that includes Node.
--authorization-mode=Node,RBAC
Audit:
/bin/ps -ef | grep kube-apiserver | grep -v grep
Expected result:
'Node,RBAC' has 'Node'
✑ Ensure that the --profiling argumentissettofalse
Remediation: Edit the API server pod specification file /etc/kubernetes/manifests/kube-apiserver.yaml on the master node and set the below parameter.
--profiling=false
Audit:
/bin/ps -ef | grep kube-apiserver | grep -v grep
Expected result:
'false' is equal to 'false'

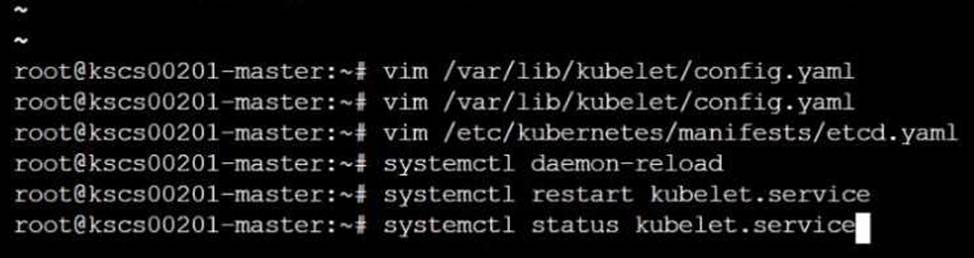

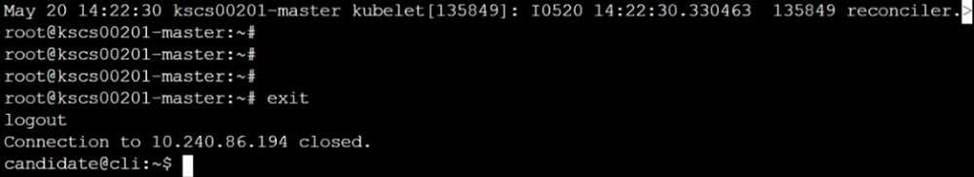

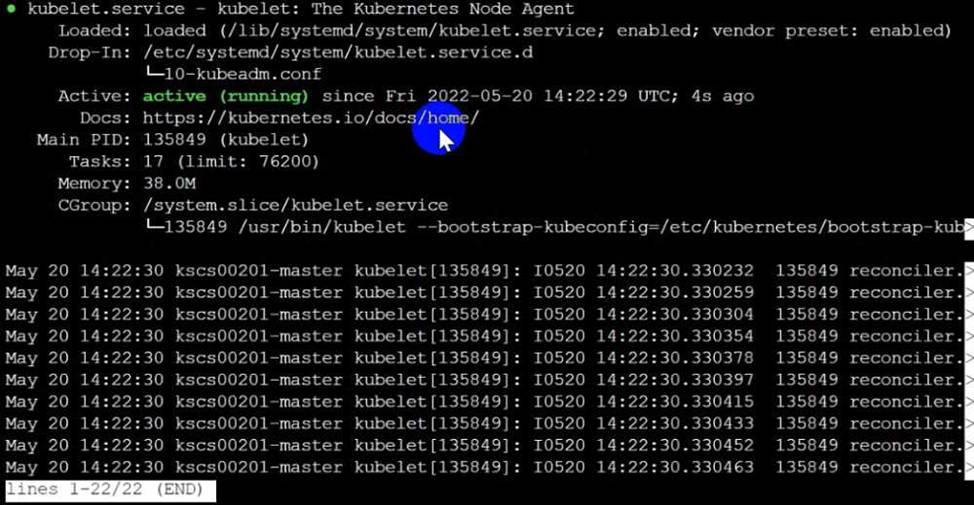

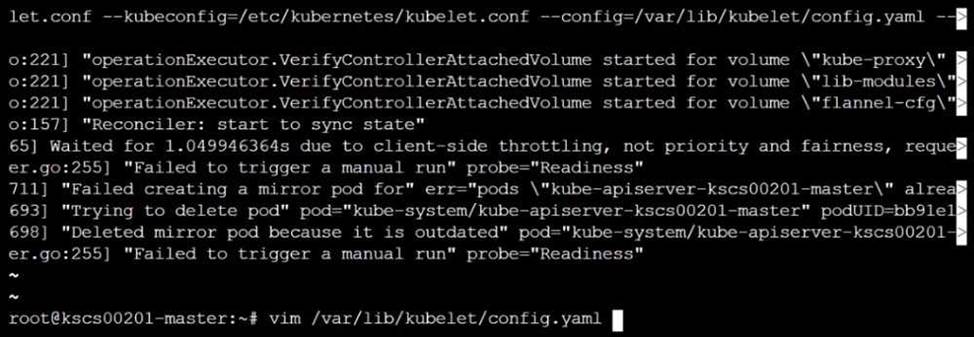

Fix all of the following violations that were found against the Kubelet:-
✑ uk.co.certification.simulator.questionpool.PList@db811b0
Remediation: If using a Kubelet config file, edit the file to set authentication: anonymous: enabled to false. If using executable arguments, edit the kubelet service file /etc/systemd/system/kubelet.service.d/10-kubeadm.conf on each worker node and set the below parameter in KUBELET_SYSTEM_PODS_ARGS variable.
--anonymous-auth=false
Based on your system, restart the kubelet service. For example:
systemctl daemon-reload
systemctl restart kubelet.service
Audit:
/bin/ps -fC kubelet
Audit Config:
/bin/cat /var/lib/kubelet/config.yaml
Expected result:
✑ 'false' is equal to 'false'
2)Ensure that the --authorization-mode argumentissetto Webhook.
Audit
docker inspect kubelet | jq -e'.[0].Args[] |match("--authorization-mode=Webhook").string'
Returned Value: --authorization-mode=Webhook
Fix all of the following violations that were found against the ETCD:-a. Ensure that the --auto-tls argument is not set to true
Do not useself-signed certificates for TLS. etcd is a highly-available key value store used
by Kubernetes deployments for persistent storage of all of its REST API objects. These
objects are sensitive in nature and should not be available to unauthenticated clients.You
should enable the client authentication via valid certificates to secure the access to the etcd
service.
Fix - BuildtimeKubernetesapiVersion: v1
kind: Pod
metadata:
annotations:
scheduler.alpha.kubernetes.io/critical-pod:""
creationTimestamp: null
labels:
component: etcd
tier: control-plane
name: etcd
namespace: kube-system
spec:
containers:
-command:
+ - etcd
+ - --auto-tls=true image:k8s.gcr.io/etcd-amd64:3.2.18 imagePullPolicy: IfNotPresent livenessProbe:
exec:
command: - /bin/sh
- -ec
- ETCDCTL_API=3 etcdctl --endpoints=https://[192.168.22.9]:2379 -- cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt -- key=/etc/kubernetes/pki/etcd/healthcheck-client.key
get foo failureThreshold:8 initialDelaySeconds:15 timeoutSeconds:15 name: etcd-should-fail resources: {} volumeMounts: -mountPath: /var/lib/etcd name: etcd-data
-mountPath: /etc/kubernetes/pki/etcd
name: etcd-certs hostNetwork:true priorityClassName: system-cluster-critical volumes:
-hostPath: path:/var/lib/etcd type: DirectoryOrCreate name: etcd-data -hostPath:
path: /etc/kubernetes/pki/etcd
type: DirectoryOrCreate
name: etcd-certs
status: {}
