Latest 2V0-41.24 Exam Practice Questions

The practice questions for 2V0-41.24 exam was last updated on 2026-11-21 .

Viewing page 1 out of 8 pages.

Viewing questions 1 out of 41 questions.

Question#1

In an NSX environment, an administrator is observing low throughput and congestion between the Tier-0 Gateway and the upstream physical routers.
What are two actions that could address low throughput and congestion? (Choose two.)

A. Configure ECMP on the Tier-0 gateway.
B. Configure a Tier-1 gateway and connect it to the physical routers directly.
C. Deploy Large size Edge node/s.
D. Configure NAT on the Tier-0 gateway.
E. To the NSX Edge node, add an additional vNIC.

Explanation:
Configure ECMP on the Tier-0 gateway: ECMP (Equal-Cost Multi-Path) allows multiple paths for traffic between the Tier-0 Gateway and the upstream physical routers, effectively distributing the traffic load and improving throughput. By enabling ECMP, you can reduce congestion and increase bandwidth utilization, thus addressing performance issues.
Deploy Large size Edge node/s: Deploying larger Edge nodes can provide more resources (CPU, memory, and network interfaces) to handle higher throughput and reduce congestion. This is particularly important if the existing Edge node is overwhelmed by the amount of traffic.

Question#2

What is the location of the insertion point for East-West network introspection?

A. Tier-0 router
B. Guest VM vNIC
C. Partner SVM
D. Host Physical NIC

Explanation:
The insertion point for East-West network introspection in NSX is at the Guest VM vNIC (virtual Network Interface Card). By inspecting traffic at the vNIC level, NSX can monitor and apply security policies to traffic between virtual machines (East-West traffic) within the same network segment or data center, providing detailed security controls over VM-to-VM communication.

Question#3

An NSX administrator wants to create a Tier-0 Gateway to support equal cost multi-path (ECMP) routing.
To meet this requirement, which failover detection protocol must be used?

A. Host Standby Router Protocol (HSRP)
B. Beacon Probing (BP)
C. Virtual Router Redundancy Protocol (VRRP)
D. Bidirectional Forwarding Detection (BFD)

Explanation:
To support Equal-Cost Multi-Path (ECMP) routing in an NSX environment, Bidirectional Forwarding Detection (BFD) must be used for failover detection. BFD is a rapid failure detection protocol that works with ECMP to provide fast failure detection between routers. It helps detect link failures more quickly than traditional protocols, ensuring that traffic is routed through available paths as quickly as possible.

Question#4

When using Federation, which is the only supported mode in NSX Global Manager?

A. Proxy
B. Policy
C. Controller
D. Proton

Explanation:
When using NSX Federation, Policy mode is the only supported mode in NSX Global Manager. This mode allows centralized management and consistent policy enforcement across multiple NSX environments, providing a unified approach for managing network and security policies in federated deployments.

Question#5

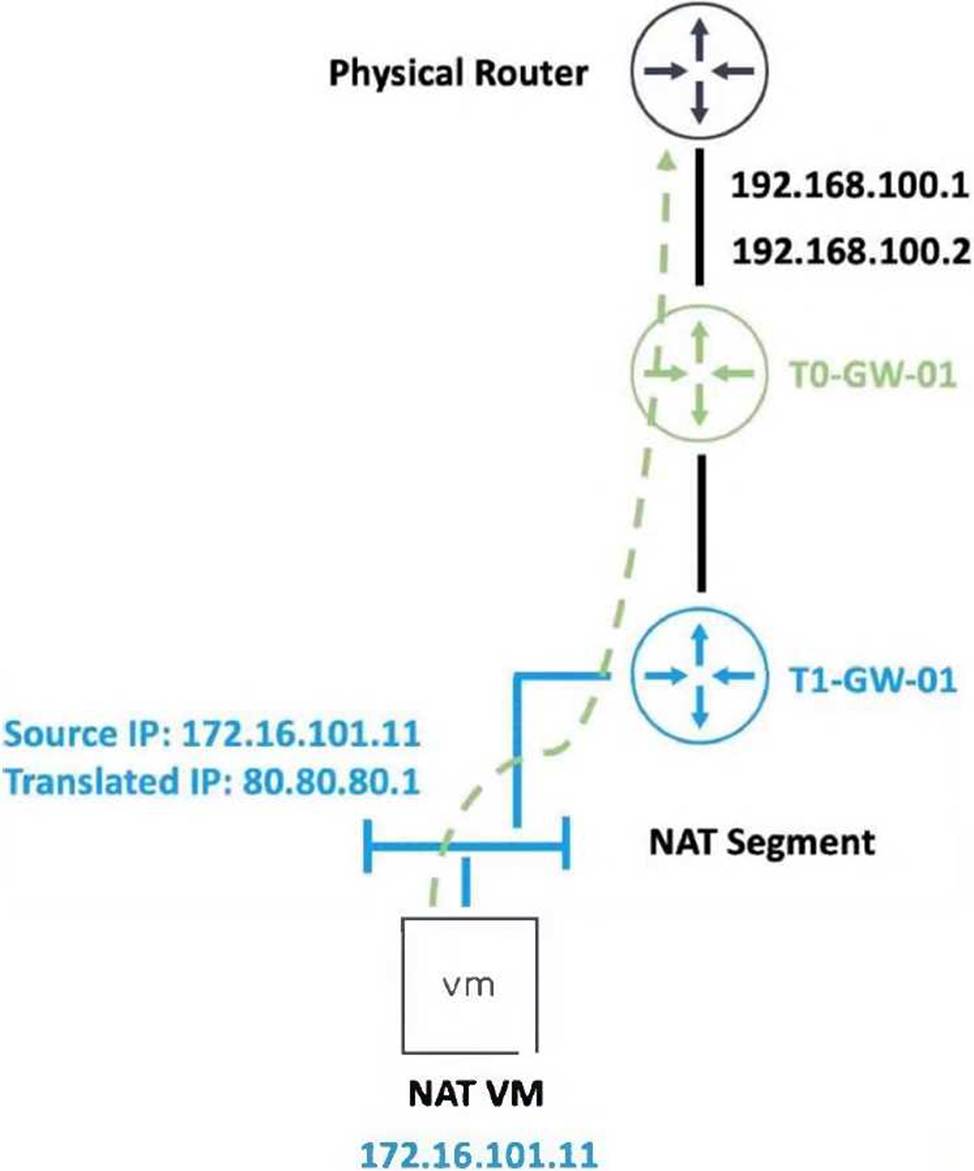

Refer to the exhibit.
An administrator would like to change the private IP address of the NAT VM 172.16.101.11 to a public address of 80.80.80.1 as the packets leave the NAT-Segment network.
To achieve this, which type of NAT solution should be implemented?


A. NAT64
B. Reflexive NAT
C. DNAT
D. SNAT

Explanation:
Source NAT (SNAT) is used to translate the private IP address (172.16.101.11) of the NAT VM to a public IP address (80.80.80.1) as the packets leave the NAT-Segment network. SNAT changes the source IP of outbound packets, allowing the mapping of private IP addresses within the internal network to public IP addresses for communication with external networks.
