Latest 350-501 Exam Practice Questions

The practice questions for 350-501 exam was last updated on 2025-06-03 .

Viewing page 1 out of 31 pages.

Viewing questions 1 out of 157 questions.

Question#1

Which function does RSVP perform in a Cisco MPLS TE environment?

A. It establishes targeted LDP sessions between neighbors that are directly connected.

B. It signals to LDP protocol along the path that a Cisco MPLS TE will be configured.

C. It reserves bandwidth for LDP sessions between routers participating in a Cisco MPLS T

D. It reserves the bandwidth along the path between the head-end and tail-end router.

Question#2

Which benefit is provided by FRR?

A. It provides fast forwarding path failure detection times for all media.

B. It provides rapid failure detection between forwarding engines.

C. It provides performance data for the service provider network.

D. It protects Cisco MPLS TE LSPs from link and node failures.

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_te_path_protect/configuration/xe-16-11/mp-te-path-protect-xe-16-11-book/mpls-traffic-engineering-fast-reroute-link-and-node-protection.html

Question#3

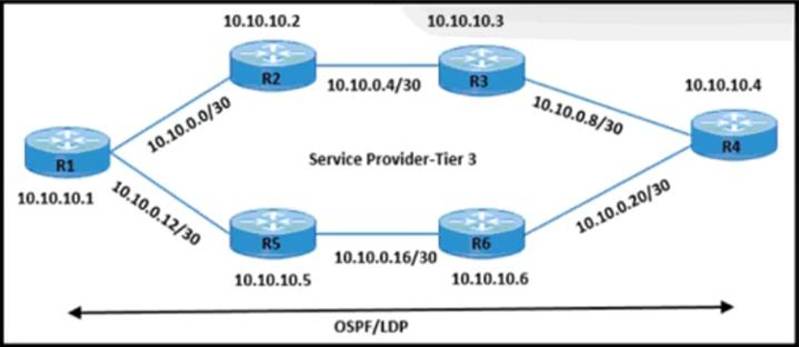

Refer to the exhibit.

The network engineer is performing end-to-end MPLS path testing with these conditions:
• Users must perform MPLS OAM for all available same-cost paths from R1 to R4.
• Traceroute operations must return all of the next-hop IP details.
Which configuration meets these requirements?

A. traceroute mpls ipv4 10.10.10.4 255.255.255.255 verbose

B. traceroute mpls multipath ipv4 10.10.10.4 255.255.255.255

C. traceroute mpls multipath ipv4 10.10.10.4 255.255.255.255 verbose

D. traceroute mpls ipv4 10.10.10.4 255.255.255.255 source 10.10.10.1

Question#4

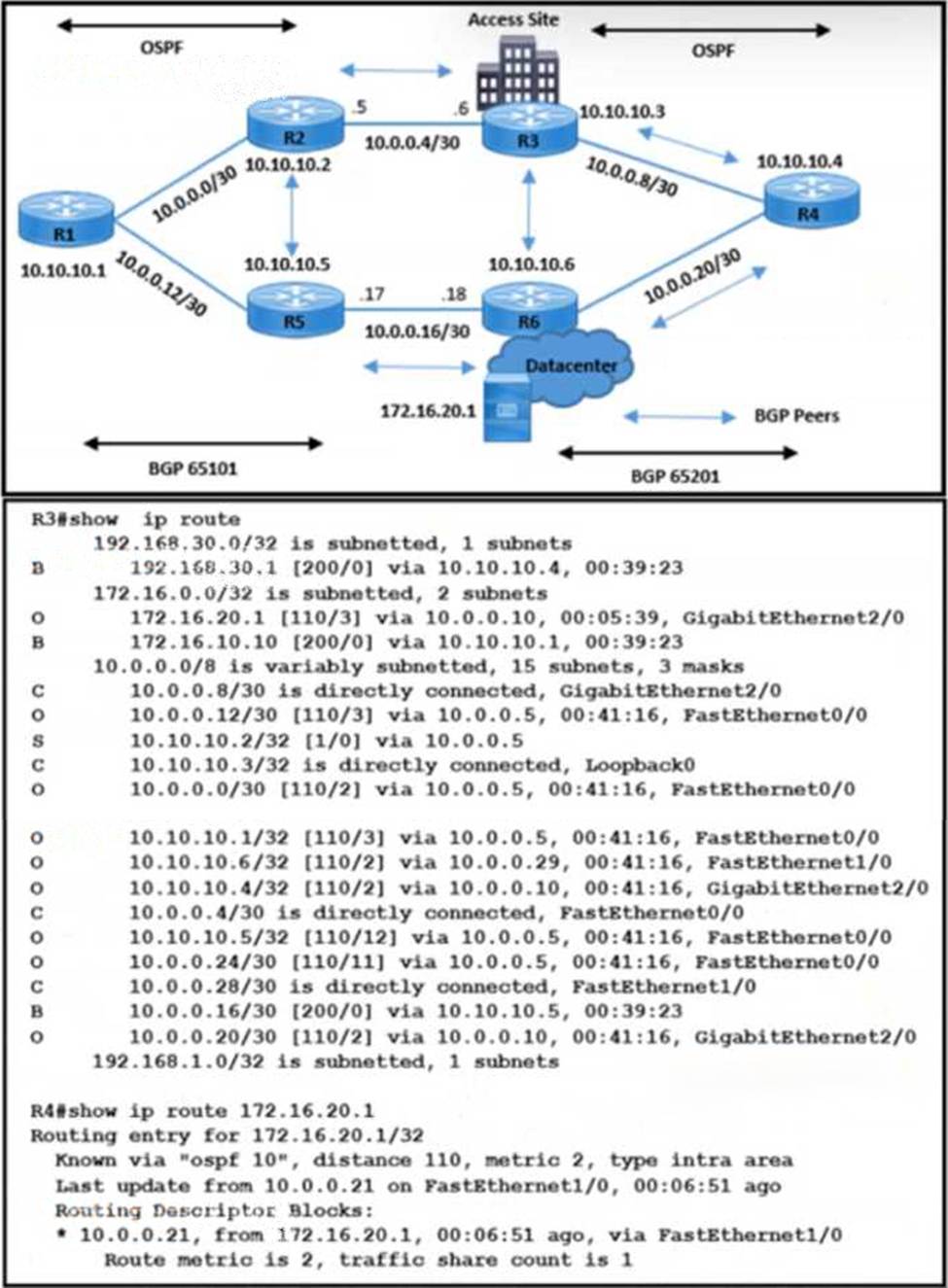

Refer to the exhibit.

The network operations team reported that the access site that is connected to R3 is not connecting to the application server in the data center and that all packets that are sent from the application server to the access site are dropped. The team verified that OSPF and BGP peerings are up in BGP AS 65101 and BGP AS 65201. R4 is expected to receive traffic from the application server route via OSPF.
Which action resolves this issue?

A. Remove the route-map on R4 when advertising 172.16.20.1 in BGP to R3.

B. Advertise application server 172.16.20.1 in the OSPF routing table on R6.

C. Allow 172.16.20.1 in the BGP advertisement on R3 in the route-map.

D. Add the next-hop-self command on R6 to enable R3 iBGP peering.

Question#5

DRAG DROP

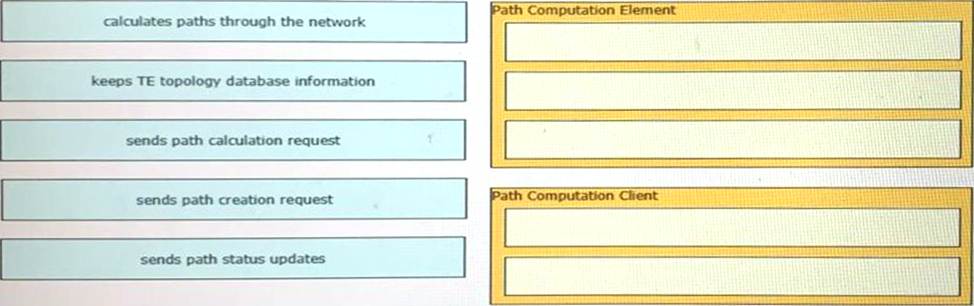

Drag and drop the functions from the left onto the correct Path Computation Element Protocol roles on the right

Explanation:
Path Computation Element (Calculates paths through the network, keeps TE topology database information, sends path status updates)
Path computation Client (sends path calculation request, sends path creation request)
Path Computation Element (PCE)
Represents a software module (which can be a component or application) that enables the router to compute paths applying a set of constraints between any pair of nodes within the router’s TE topology database. PCEs are discovered through IGP.
Path Computation Client (PCC)
Represents a software module running on a router that is capable of sending and receiving path computation requests and responses to and from PCEs. The PCC is typically an LSR (Label Switching Router).
https://www.cisco.com/c/en/us/td/docs/routers/crs/software/crs_r5-3/mpls/configuration/guide/b-mpls-cg53x-crs/b-mpls-cg53x-crs_chapter_0110.html#con_1279822
