D-PE-OE-01 Certification Exam Guide + Practice Questions Updated 2026

Explanation:
When a Dell PowerEdge server executing heavy compute virtualization workloads displays unexpected CPU frequency throttling without associated thermal errors or hardware component degradation, the cause is generally a restrictive power management rule. Inside the System Setup BIOS configurations, the System Profile option manages energy efficiency and operational power policies across the processors. If the System Profile is explicitly configured to 'Performance per Watt', the platform activates aggressive Demand-Based Switching (DBS) and lets the processor's power capping policies downclock core frequencies to decrease overall power consumption. Under dense virtualization load conditions where resource requests fluctuate rapidly, this power-capping profile introduces unneeded clock frequency throttling, directly degrading virtual machine compute performance. To maximize frequency stability and guarantee that core frequencies match the maximum base clock speed during heavy workloads, the system profile must be adjusted to 'Performance'. This modification turns off hardware power-throttling states and ensures processing units run with minimal latency constraints.
Study Guide References: Server Monitoring; BIOS System Profiles; Power Metrics and Processor Performance Polling.

Explanation:
The UEFI0073 boot fault combined with explicit notifications regarding a security boot policy failure indicates that the Unified Extensible Firmware Interface (UEFI) Secure Boot mechanism has rejected the operating system bootloader. In the architecture of modern Dell PowerEdge servers, the operating system bootloader image for enterprise Linux environments (such as Red Hat Enterprise Linux) is frequently deployed onto an internal BOSS-N1 (Boot Optimized Storage Solution) controller card. The BOSS-N1 is an optimized hardware-RAID controller holding dual M.2 NVMe solid-state storage drives dedicated entirely to host operating system execution. When the platform security framework verifies the cryptographic signatures of the bootloader file during early initialization phases, any mismatch against the signature keys enrolled within the system firmware results in an immediate execution block. While the underlying cryptographic elements are managed by platform keys, the specific physical component causing the initialization failure loop is the BOSS-N1 storage subsystem hosting the unvalidated OS image. To remedy this behavior, the administrator must either enroll the required Red Hat enterprise certificate authorities or adjust Secure Boot enforcement within System Setup.
Study Guide References: Troubleshooting; Boot Optimized Storage Solution (BOSS-N1); UEFI Secure Boot Architecture.

Explanation:

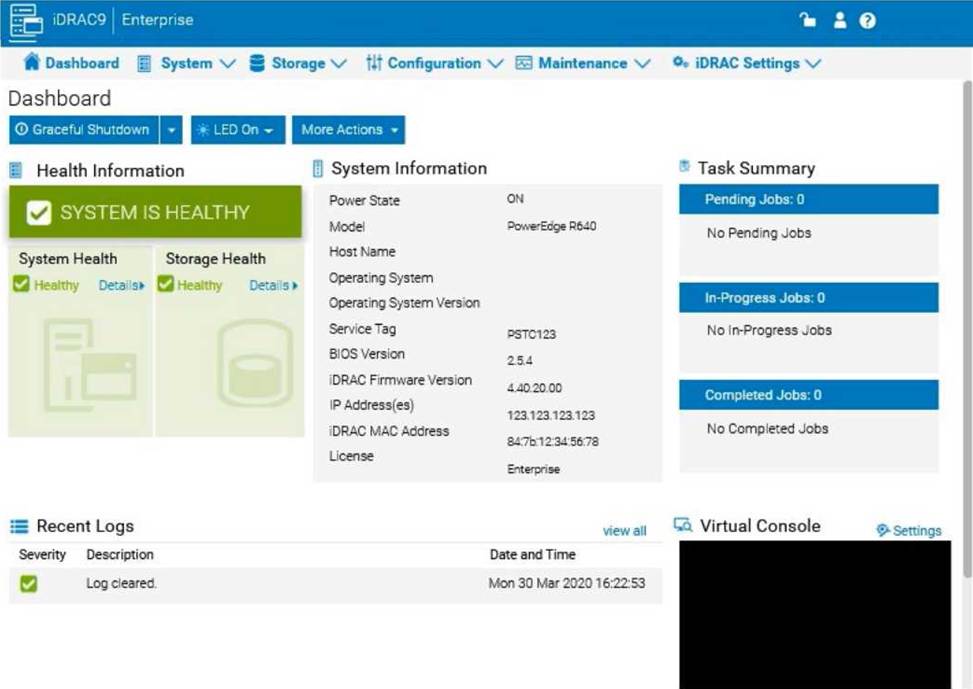

Within the iDRAC power management interface for Dell PowerEdge servers, configuring power supply unit (PSU) high availability requires setting a foundational redundancy policy. The proper policy to select is 'Redundant'. This policy ensures that the power subsystem can survive the loss of a single power feed or a hardware failure within an individual power supply unit. Once the 'Redundant' policy wrapper is globally enabled, advanced sub-settings such as the Hot Spare feature become available. The Hot Spare framework allows the administrator to prioritize specific power supplies, enabling the option to configure a primary PSU (such as PSU1) to carry the active operational load while placing secondary units (such as PSU2) into a lower-consumption standby sleep state. If the primary power supply encounters a failure or an input voltage interruption, the standby PSU instantly transitions to an active state to maintain uninterrupted server operations. Study Guide References: Server Deployment; iDRAC Power Management; PSU Redundancy and Hot Spare Configuration.

Explanation:
Isolating a severe execution failure such as a No-Video or No-POST state on a Dell PowerEdge R760 server requires executing a systematic component isolation strategy known as a Minimum-to-POST test configuration. This diagnostic process establishes the absolute minimum selection of core electrical and compute components required for the platform's Unified Extensible Firmware Interface (UEFI) and baseboard management controller to initialize, clear power-on diagnostics, and complete core system initialization. For a standard PowerEdge 16G dual-socket chassis, a valid Minimum-to-POST configuration consists strictly of one central processing unit (CPU 1), a single memory module (DIMM) installed in the designated primary memory channel slot associated with CPU 1, one functional power supply unit (PSU), and the complete removal of all auxiliary components, including expansion riser cards, non-essential storage backplanes, and PCIe accelerators. Excluding unneeded components removes potential electrical shorts, device negotiation lockups, and bus initialization faults from the communication path, allowing technicians to definitively confirm if the foundational motherboard assembly, processor, or primary memory block is the root cause of the system failure.
Study Guide References: Troubleshooting; Minimum-to-POST Diagnostic Subsystems; Hardware Isolation Fault Recovery.

Explanation:
Planning a storage capacity expansion on a live enterprise production server hosting mission-critical databases necessitates verifying the architectural boundaries of the underlying PowerEdge storage subsystem. A RAID 10 virtual disk layout functions by striping data across multiple mirrored drive pairs (spans), meaning any structural expansion via Online Capacity Expansion (OCE) typically demands the simultaneous addition of an entire new mirror set, which requires a minimum of two physical disks. Because the physical chassis currently possesses only one unpopulated drive bay, executing a standard online expansion by dropping a single drive into the matrix is structurally impossible. Therefore, the operations team must first evaluate the PowerEdge RAID Controller (PERC) capabilities, confirm the exact physical drive slot constraints, and determine if alternative modification methods―such as sequentially swapping existing drives with higher-capacity units―are supported by the firmware. Attempting an immediate online capacity modification without inspecting controller constraints can lead to unexpected failures, and replacing the physical controller on a live production machine introduces severe operational downtime that violates the continuous availability mandate.
Study Guide References: Server Maintenance; PowerEdge RAID Controller (PERC) Operations; Online Capacity Expansion Constraints
