D-PSC-MN-01 Online Practice Questions

Explanation:

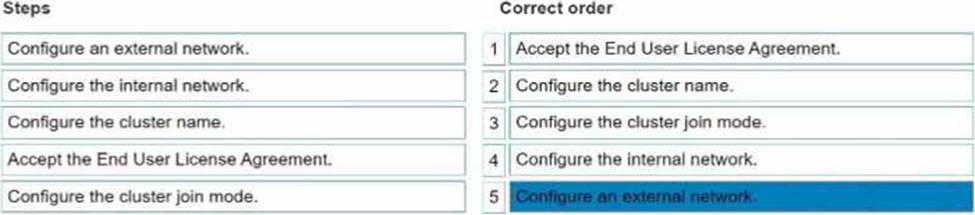

The correct sequence is:
Accept End User License Agreement
Configure cluster name
Configure cluster join mode
Configure internal network
Configure external network
When creating a new Dell PowerScale cluster using the Configuration Wizard, the steps must be performed in a specific sequence to ensure proper setup and functionality. Below is the detailed order of the steps with explanations and references to Dell PowerScale documentation.

Explanation:
In Dell EMC PowerScale F600 nodes, the Internal Dual SD Module (IDSDM) serves a specific role related to system configuration data. Understanding the function of the IDSDM is essential for maintaining system integrity and ensuring reliable operation.
Key Points:
Platform Serial Interface (PSI):
The PSI stores critical system configuration information such as node serial numbers, network configurations, cluster membership details, and hardware settings. This data is vital for the node's identity and operation within the cluster.
Function of IDSDM:
The IDSDM acts as a secondary backup for the PSI information.
It provides an additional layer of protection by storing a redundant copy of the PSI data on removable SD cards.
This redundancy ensures that if the primary PSI data becomes corrupted or inaccessible, the system
can recover using the backup from the IDSDM.
IDSDM Components:
The module contains two micro SD cards for redundancy.
Both SD cards store the same PSI information, enhancing reliability.
Why Option D is Correct:
Secondary Backup:
The primary copy of the PSI data resides on the node's motherboard.
The IDSDM serves as a backup location, making it the secondary backup for PSI information.
Why Other Options Are Incorrect:
Option A (Primary backup for PSI information):
Incorrect because the primary PSI data is on the motherboard, not on the IDSDM.
Option B (With two micro SD cards, it is a redundant backup for PSI information and temporary storage for FW upgrade binaries):
The IDSDM does not store firmware upgrade binaries; its sole purpose is to back up PSI data.
Option C (With one micro SD card...):
The IDSDM in F600 nodes uses two SD cards for redundancy but does not change its function based on the number of cards. It does not store firmware upgrade binaries. Dell PowerScale
Reference: Dell EMC PowerScale F600 Technical Guide:
Section on System Components:
Explains the role of the IDSDM as a backup for PSI data. Highlights the importance of PSI information for node operation. Dell EMC PowerScale OneFS Administration Guide:
Chapter on System Configuration and Maintenance:
Details how the PSI data is stored, backed up, and recovered.
Emphasizes the function of the IDSDM in protecting configuration data.
Best Practices:
Regular Monitoring:
Check the health of the IDSDM during routine maintenance.
Secure Handling:
When servicing the IDSDM, ensure proper ESD precautions to prevent damage.
Documentation:
Keep records of any changes to the IDSDM or PSI data for troubleshooting purposes.

Explanation:
The Dell PowerScale F600 node supports 10/25 GbE network interface cards (NICs) for the external network connections. These NICs provide high-speed connectivity suitable for the performance capabilities of the F600, which is an all-flash node designed for demanding workloads.
Dell PowerScale F600 Networking Options:
The F600 comes with network interfaces that support both 10 GbE and 25 GbE speeds.
These interfaces use SFP28 transceivers, which are compatible with both 10 GbE and 25 GbE connections.
Supported NIC Types:
10/25 GbE NICs:
Allow flexibility in network configurations.
Enable integration with existing 10 GbE networks while providing an upgrade path to 25 GbE.
Not Supporting 1 GbE or 40/100 GbE as Primary External Connections:
The F600 does not support 1 GbE as it would be a bottleneck for an all-flash node.
While the F600 may have 100 GbE capabilities for backend or other uses, the primary external network interfaces are 10/25 GbE.
Benefits of 10/25 GbE Connectivity:
Performance:
Provides sufficient bandwidth for high-performance applications.
Scalability:
Easy to scale up network speeds as infrastructure upgrades from 10 GbE to 25 GbE.
Cost-Effectiveness:
Offers a balance between performance and cost compared to higher-speed options like 40 GbE or 100 GbE.
Dell PowerScale
Reference: Dell EMC PowerScale F600 Specification Sheet:
Details the networking capabilities and supported NICs.
Dell EMC PowerScale Network Deployment Guide:
Provides guidelines on network configurations and best practices for F600 nodes.
Hardware Installation Guides:
Outline the installation and configuration of NICs for F600 nodes.

Explanation:
In a Dell EMC PowerScale cluster, int-a and int-b are internal network interfaces used for back-end communication between nodes. Proper configuration of these interfaces is essential for cluster performance and redundancy.
Considerations:
Separate Subnets for int-a and int-b:
Assigning int-a and int-b to separate subnets enhances network redundancy.
If one subnet experiences issues, the other can continue to handle internal traffic.
Not on the Same Subnet:
Placing both interfaces on the same subnet can create a single point of failure.
It may also cause network conflicts and degrade performance.
Key Points:
Network Isolation: Separating int-a and int-b ensures that internal communications are robust and fault-tolerant.
Performance Optimization: This configuration allows for load balancing of internal traffic.
Dell PowerScale
Reference: Dell EMC PowerScale OneFS Network Configuration Guide:
Internal Network Configuration section recommends using separate subnets for int-a and int-b.
Explains the benefits of network redundancy and performance.
Best Practices:
Plan IP addressing schemes that allocate different subnets for internal interfaces.
Document network configurations for troubleshooting and maintenance.

Explanation:
To safely power off a node in a Dell EMC PowerScale cluster, use the shutdown command with the appropriate options.
Command Details:
shutdown -p now:
shutdown: Initiates a system shutdown.
-p: Powers off the system after shutdown.
now: Executes the command immediately.
Why Other Options Are Incorrect:
Option A (isi status -q): Displays cluster status; doesn't control power.
Option B (isi status -h): Invalid option; isi status doesn't power off nodes.
Option D (shutdown -h now): Halts the system but may not power it off.
Dell PowerScale
Reference: Dell EMC PowerScale OneFS Administration Guide:
Shutting Down Nodes Section:
Recommends using shutdown -p now for powering off nodes.
Safety Precautions:
Advises to notify users and ensure no critical processes are running.
Best Practices:
Verify that the node is not hosting critical services before shutdown.
Inform cluster administrators of maintenance activities.
