NSE5_SSE_AD-7.6 Certification Exam Guide + Practice Questions Updated 2026

Explanation:
According to the SD-WAN 7.6 Core Administrator curriculum and the provided exhibits, the traffic steering decision is determined by the interaction between the Lowest Cost (SLA) strategy and the link health status reported in the event logs.
Rule Strategy (Lowest Cost SLA): The SD-WAN rule configuration for ID 1 (named Critical-DIA) is set to
mode sla. In this mode, the FortiGate will only steer traffic through member interfaces that satisfy the assigned Performance SLA targets.
Member Preference: The rule defines priority-members 1 2. This means that under normal conditions (where both links are healthy), Member 1 (port1) is the preferred interface because it is listed first.

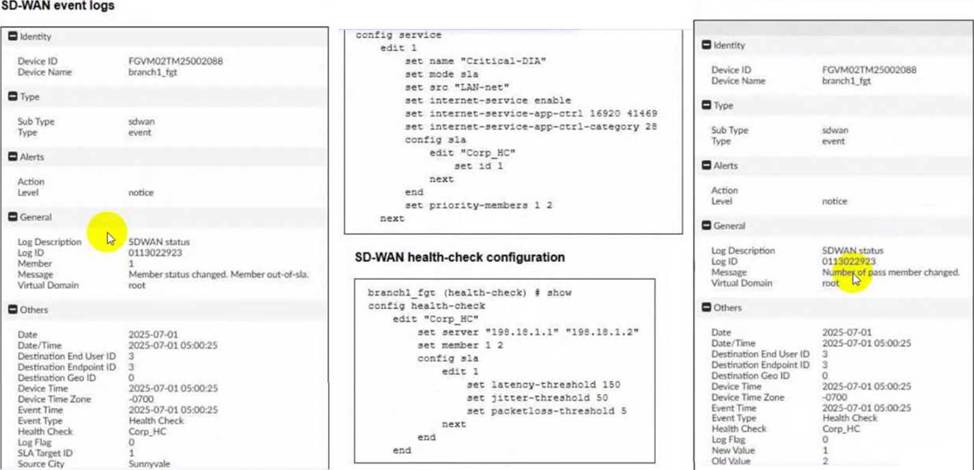

Event Log Analysis:
The first log message explicitly states: "Member status changed. Member out-of-sla." for Member 1. This indicates that port1 has exceeded one of the thresholds (latency, jitter, or packet loss) defined in the Corp_HC health check.
The second log confirms: "Number of pass member changed. New Value: 1, Old Value: 2". This verifies that while there were previously two links passing the SLA, now only one link (Member 2/port2) remains in a passing state.
Steering Decision: Because the rule strategy is mode sla and the primary preferred member (port1) is now out-of-sla, the FortiGate immediately disqualifies Member 1 from the selection pool for this specific rule. It then moves to the next available member in the priority list that does satisfy the SLA, which is Member 2 (port2).
Why other options are incorrect:
Option A: FortiGate will not load balance or choose between both links because port1 is currently ineligible due to the SLA failure.
Option B: Steering to port1 would violate the "Lowest Cost (SLA)" rule logic, as that link is no longer meeting the required health standards.
Option D: FortiGate does not "skip" the rule unless no members meet the SLA and there is no
fallback configured; in this scenario, port2 is still passing and available.

Explanation:
According to the SD-WAN 7.6 Core Administrator study guide and the Fortinet Document Library, FortiOS maintains strict referential integrity for SD-WAN objects. An SD-WAN member interface cannot be deleted or removed from the configuration if it is still being "used" or referenced by other features.
Reference Locking: In the FortiOS GUI, the "Delete" button for an SD-WAN member is typically grayed out or an error message appears if the interface is part of an active service or monitoring tool.
Performance SLA Dependency: Performance SLAs (health checks) monitor specific member interfaces. If an interface is a participant in an SLA, it is considered "active" by the system. Therefore, a critical first step in the decommissioning process is to remove the member from all Performance SLA definitions. Once the health check is no longer polling that interface, one major reference lock is released.
Other Dependencies: While firewall policies and SD-WAN rules (service rules) also create references,
the question specifies the member is "no longer used to steer traffic," implying it may have already been removed from steering rules. However, Performance SLAs often remain active in the background, making their removal the essential next step to permit the deletion of the member itself.
Why other options are incorrect:
Option A: Moving a member between zones doesn't help you delete it; it just changes its logical grouping. It still remains an active SD-WAN member.
Option B: Disabling the physical interface does not remove the configuration references within the SD-WAN engine. The FortiGate will simply report the member as "Down," but it will still exist in the configuration as a member.
Option D: In modern SD-WAN deployments, static routes usually point to the SD-WAN Zone (like virtual-wan-link) rather than individual physical interfaces. Therefore, you don't typically need to delete the static route to remove a single member from the zone.

Explanation:
According to the SD-WAN 7.6 Core Administrator study guide and the Fortinet Document Library, the interaction between SD-WAN rules and SLA targets is governed by specific selection and measurement logic:
Usage by Strategy (Option B): SLA targets are fundamentally used by the Lowest Cost (SLA) strategy to determine which links are currently healthy enough to be considered for traffic steering. While other strategies like Best Quality use a "Measured SLA" to monitor metrics, they do not typically use the "Required SLA Target" to disqualify links unless specifically configured in a hybrid mode. In most curriculum contexts, the "Required SLA Target" field is specifically associated with the Lowest Cost and Maximize Bandwidth strategies.
SLA Compliance Checking (Option D): SD-WAN rules utilize SLA targets as a "pass/fail" gatekeeper. The engine checks if the preferred members meet the defined SLA requirements (latency, jitter, or packet loss thresholds). If a preferred member fails the SLA, the rule will move to the next member in the priority list that does meet the SLA.
Single SLA Binding (Option E): When configuring an SD-WAN rule, the GUI and CLI allow you to select multiple SLA targets, but they must all belong to the same Performance SLA profile. You cannot mix and match targets from different health checks (e.g., Target 1 from "Google_HC" and Target 2 from "Amazon_HC") within a single SD-WAN rule.
Why other options are incorrect:
Option A: This is incorrect because a single SD-WAN rule can only be associated with one specific Performance SLA profile at a time; therefore, you cannot select targets from different SLAs.
Option C: This is incorrect because member metrics (latency, jitter, packet loss) are measured by the Performance SLA probes regardless of whether an SD-WAN rule is currently using that SLA target for steering decisions. Measurement is a function of the health-check, not the rule matching process.
