Latest OGA-031 Exam Practice Questions

The practice questions for OGA-031 exam was last updated on 2025-06-03 .

Viewing page 1 out of 2 pages.

Viewing questions 1 out of 14 questions.

Question#1

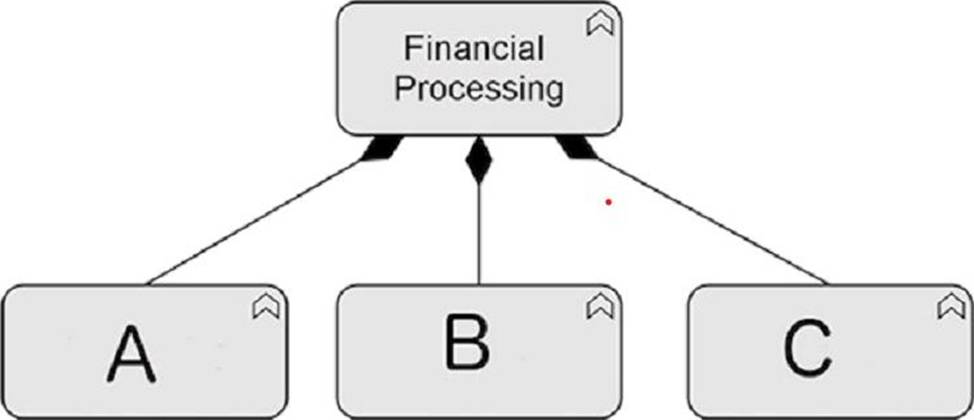

Consider the following diagram:

Which of the following is the correct description of the diagram?

A. The financial processing function aggregates the three sub-functions Al B, and

B. The financial processing function is influenced by the three sub-functions A, B, and C_

C. The financial processing function is assigned the three sub-functions A, B, and

D. The financial processing function is composed of three sub-functions A, B, and

Explanation:
Based on the ArchiMate 3 documents or objectives, the diagram uses a composition relationship to indicate that the financial processing function consists of three sub-functions A, B, and
C. A composition relationship is a type of structural relationship that represents a whole-part hierarchy between elements. The notation for a composition relationship is a solid line with a filled diamond at the end that points to the whole element. References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1.

Question#2

Complete the sentence. In the physical elements metamodel, a facility is a specialization of a ___________

A. Technology service

B. path

C. Technology interaction

D. Node

Explanation:
According to the physical elements metamodel, a facility is a specialization of a node, which is an active structure element that represents a computational or physical resource that hosts, manipulates, or interacts with other computational or physical resources. A facility can be used to model physical buildings or locations.
References: Physical Layer: Part 1 - Metamodel1; ArchiMate® 3.0.1 Specification, Chapter 9: Physical Elements2.

Question#3

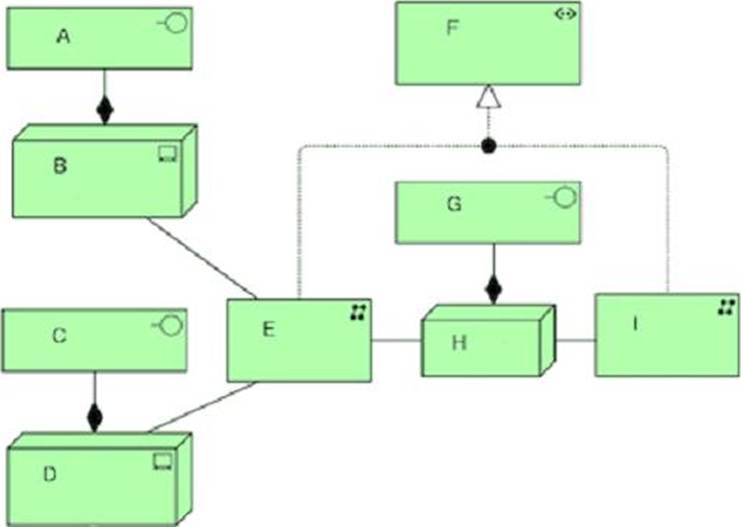

Consider the following diagram:

What correctly describes the elements E, F and I?

A. The two communication networks E and I together realize a path

B. Communication network E passes data from server B through the path F to communication network I

C. Technology collaboration F aggregates the two communication networks E and l.

D. Users on servers B and D trigger data from communication network E to I through path

Explanation:
Based on the ArchiMate 3 documents or objectives, a communication network represents a set of structures that connects devices or system software for transmission, routing, and reception of data. A path models the relation between two or more technology internal active structure elements, through which these can exchange information. The diagram uses a flow relationship to indicate that data flows from server B to communication network E, then through path F to communication network I. The notation for a flow relationship is a dashed line with an open arrowhead at the end that points to the direction of the flow.
References: ArchiMate® 3.2 Specification, Chapter 11 Technology Layer, Section 11.2 Active Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.4 Dynamic Relationships 1; ArchiMate communication network 2.

Question#4

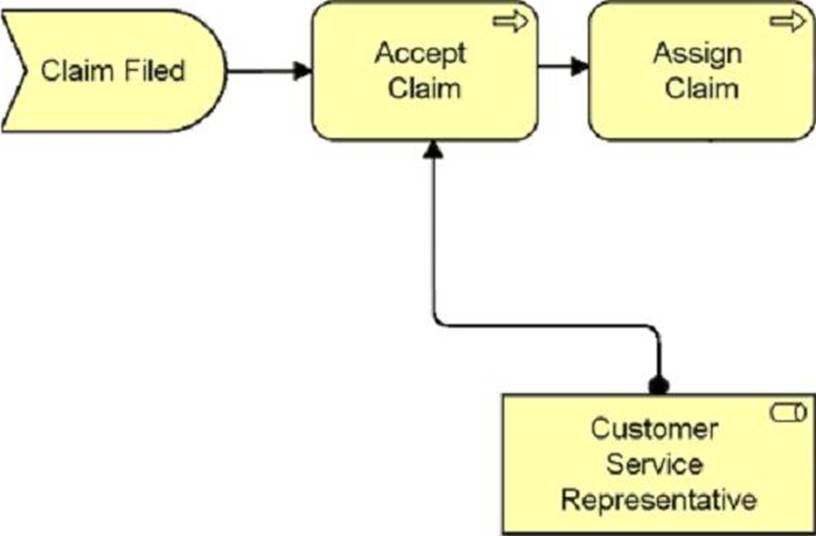

Consider the following diagram which shows part of the ArchiSurance Claims Administration:

Which of the following correctly describes this diagram?

A. The event Claim Filed triggers the Accept Claim process which is serviced by the Customer Service Representative role before the Assign Claim process.

B. The Claim Filed event assigns the Customer Service Representative to participate in the Accept Claim and Assign Claim processing.

C. The information that flows from Claim Filed to Accept Claim and then to Assign Claim is reviewed by the Customer Service Representative role.

D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.

Explanation:
The correct answer is
D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process. This is because the diagram shows a business event (Claim Filed) that initiates a business process (Accept Claim) which is performed by a business role (Customer Service Representative). The business process then triggers another business process (Assign Claim) which is also performed by the same business role. The diagram does not show any information flow or assignment relationships between the elements.

Question#5

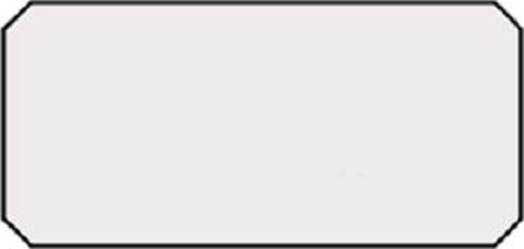

What element type is denoted by the symbol below using the standard notation conventions?

A. Behavior element

B. Structure element

C. Physical element

D. Motivation element

Explanation:
According to the standard notation conventions, a structure element is denoted by a rectangle with rounded corners. A structure element represents an entity that has a state and exhibits some behavior. Examples of structure elements are actors, roles, components, nodes, and objects.
