FCSS_EFW_AD-7.4 Exam Questions 2026 – Practice Test with Answers

Home / Fortinet / FCSS_EFW_AD-7.4

Latest FCSS_EFW_AD-7.4 Exam Practice Questions

The practice questions for FCSS_EFW_AD-7.4 exam was last updated on 2026-11-21 .

Viewing page 1 out of 18 pages.

Viewing questions 1 out of 93 questions.

Question#1

An administrator wants to capture encrypted phase 2 traffic between two FortiGate devices using the built-in sniffer.
If the administrator knows that there is no NAT device located between both FortiGate devices, which command should be run by the administrator?

A. diagnose sniffer packet any 'ah'
B. diagnose sniffer packet any 'ip proto 50'
C. diagnose sniffer packet any 'udp port 4500'
D. diagnose sniffer packet any 'udp port 500'

Question#2

Two independent FortiGate HA clusters are connected to the same broadcast domain. The administrator has reported that both clusters are using the same HA virtual MAC address. This causes a duplicated MAC address problem in the network.
What HA setting must be changed in one of the HA clusters to fix the problem?

A. Group I
B. Group name.
C. Session pickup.
D. Gratuitous ARPs.

Question#3

An LDAP user cannot authenticate against a FortiGate device.

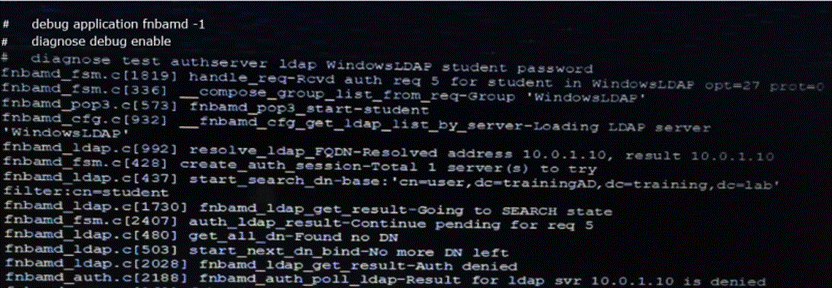

Examine the real time debug output shown in the exhibit when the user attempted the authentication; then answer the question below.







Based on the output in the exhibit, what can lead to this authentication problem?

A. The FortiGate has been configured with an incorrect password for the LDAP administrator.
B. User student is using an incorrect password.
C. User student is not found in the LDAP server.
D. The FortiGate has been configured with an incorrect authentication schema.

Question#4

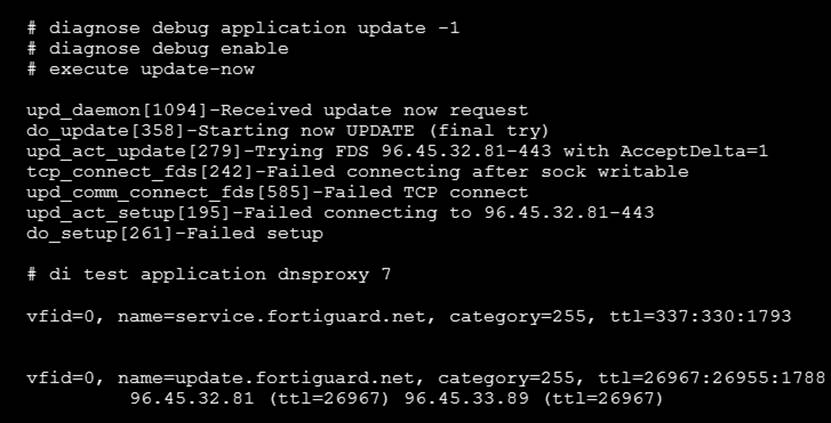

View the exhibit, which contains the output of a real-time debug, and then answer the question below.



Why the update is failing is described by which one of the following statements?

A. The update should be using port 53 or port 8888, rather than port 443.
B. FortiGate is unable to resolve the required FQDN (service.fortiguard.net) for AV and IPS updates.
C. FortiGate is unable to establish a TCP connection with FD
D. The administrator should instead use the execute update-wf command.

Question#5

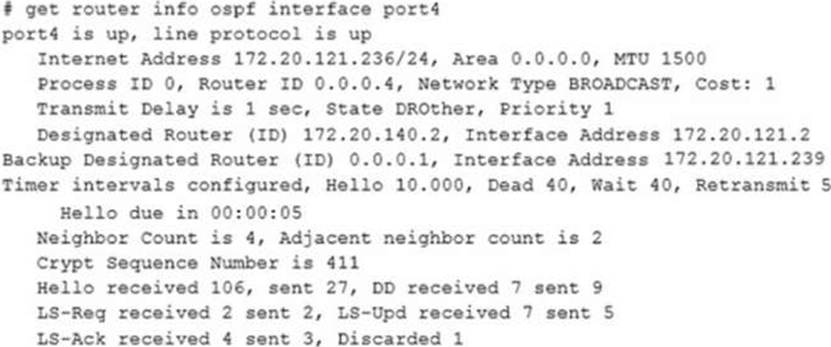

View the exhibit, which contains the output of a debug command, and then answer the question below.



About the exhibit which of the following statements are true? (Choose two.)

A. In the network on port4, two OSPF routers are down
B. Port4 is connected to the OSPF backbone area.
C. The local FortiGate’s OSPF router ID is 0.0.0.4
D. The local FortiGate has been elected to serve as the OSPF backup designated router.
