Explanation:

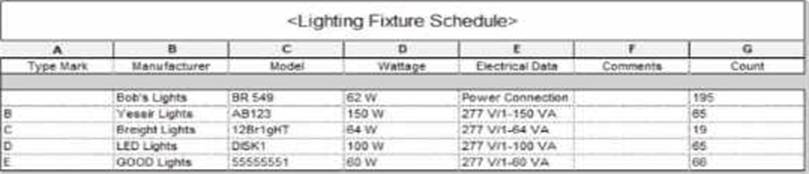

In the given Lighting Fixture Schedule, each row represents a lighting fixture type rather than individual instances, and the “Count” column summarizes how many fixtures of that type exist in the project. To achieve this layout in Revit, two specific actions must be performed in the Schedule Properties dialog:
Deselected “Itemize every instance.”
The Revit documentation explains:
“Itemize every instance. This option displays all instances of an element in individual rows. If you clear this option, multiple instances collapse to the same row based on the sorting parameter. If you do not specify a sorting parameter, all instances collapse to one row.”
By deselecting this checkbox, Revit consolidates identical fixture instances of the same type into a single row ― exactly as shown in the exhibit, where each “Type Mark” (A, B, C, etc.) appears once with a summarized Count.
Sorted by Type Mark.
On the same Sorting/Grouping tab, Revit allows users to organize the schedule by a specific field:
“On the Sorting/Grouping tab of the Schedule Properties dialog, you can specify sorting options for rows in a schedule… You can sort by any field in a schedule, except Count.”
In the example, fixtures are sorted alphabetically by their “Type Mark” (A through E). This ensures the grouped and counted results appear in order.
Other options―such as filtering by type mark or adding switch data―do not impact how instances collapse or group within the schedule.

Explanation:
In Autodesk Revit for Electrical Design, there are two correct and officially supported methods to transfer or copy Cable Tray Types (including sizes, materials, and type properties) from an existing project into a template file (.rte). These methods ensure that all type definitions, fittings, and related MEP settings are preserved.
✅ Option B (Clipboard Copy within the same Revit session)

Explanation:
In Autodesk Revit MEP, conduit systems can be represented in plan views using either detailed or single-line symbology. The Single Line Symbology display setting is used for schematic or simplified representations ― often in electrical riser or distribution diagrams.
The setting that controls whether conduits display in single-line or detailed form is found in the Type Properties of the conduit family, not in Object Styles or Electrical Settings.
Specifically, it is accessed by selecting a conduit in the model and navigating to:
Properties Palette → Edit Type → Single Line Symbology
From there, users can define how fittings, rise/drop symbols, and conduits themselves are represented in single-line schematic mode. Adjusting this type parameter affects the graphical display for that conduit type throughout all applicable views where single-line graphics are used.
According to the Autodesk Revit MEP User’s Guide (Electrical Systems → Conduit Systems section):
“The conduit type properties define the graphical representation in single-line drawings. By editing the Single Line Symbology in the Type Properties dialog, designers control how the conduit and fittings appear in plan views.”
This parameter is especially important in electrical documentation where simplified representations are required for coordination and electrical diagrams.

Explanation:

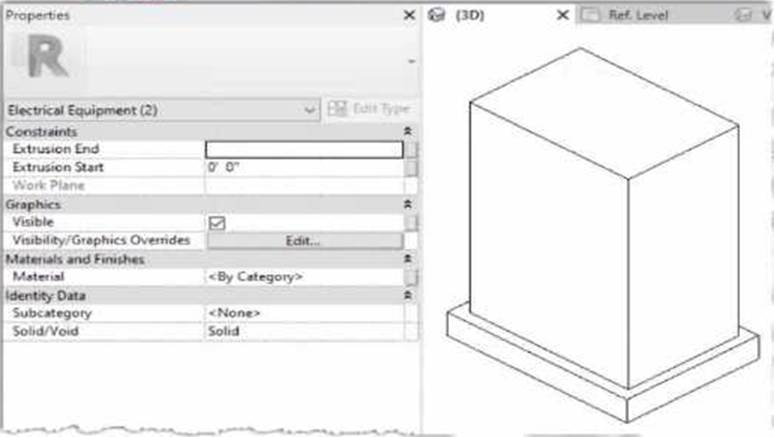

In Autodesk Revit Electrical Design, when customizing a family―such as a transformer with a housekeeping pad―each element within the family can have its own subcategory under the parent category (in this case, Electrical Equipment). Subcategories are critical for controlling line weight, color, and material properties independently in project views and visibility settings.
The issue described is that the transformer and its concrete pad currently share the same default category (Electrical Equipment) and therefore use identical line weights and colors in plan view. The designer wants the housekeeping pad to display differently ― for example, with a lighter or dashed outline.
According to the Autodesk Revit MEP User’s Guide (Chapter: Creating and Editing Families):
“To control the visibility or graphical appearance of individual components within a family, create a new Object Styles subcategory under the parent category. You can then assign any solid or void geometry in the family to that subcategory. When loaded into a project, the subcategory can be independently controlled through Visibility/Graphics (VG) settings.”
This is the exact and recommended workflow for differentiating line appearances between elements in the same family.
Steps to achieve this:
In the Family Editor, open Manage tab ➤ Object Styles.
Under the Model Objects tab, click New to create a new subcategory (e.g., “Housekeeping Pad”).
Set the desired line weight, color, or material properties.
Select the housekeeping pad extrusion in the model.
In the Properties palette, under Identity Data → Subcategory, choose Housekeeping Pad.
Reload the family into the project.
You can now modify or control its visibility independently in project views.
Why the other options are incorrect:
A. Change to void: A void removes geometry, not graphical appearance.
B. Override Graphics in View: Applies only in a single view, not globally across the project.
D. Visibility from context menu: Controls whether the object is visible, not its line properties.
Thus, the most efficient, parametric, and Revit-standard method is to use subcategories within the family to apply distinct graphical controls.
References:
Autodesk Revit MEP 2011 User’s Guide, Chapter 53: Creating Families C Managing Object Styles, pp.
1248C1251.
Autodesk Revit Architecture 2020 Help, “Assigning Geometry to Subcategories in Families.”
Smithsonian Facilities Revit Template User’s Guide (2021), Section 8.4.1 C Electrical Equipment Family Standards and Subcategories.

Explanation:
In Revit Electrical Design, the Selection Box tool is used to quickly isolate and display selected components in a cropped 3D view. When an electrical designer selects conduits or devices in a model and chooses Selection Box from the Modify tab, Revit automatically generates a 3D view bounded tightly around the selected elements, helping coordinate routing in confined or congested spaces.
According to the Revit MEP User’s Guide under “Creating 3D Views”:
“Use the Selection Box tool to create a 3D view that isolates selected elements. Revit automatically crops the view extents to the selected geometry.”
This feature is critical in multidisciplinary coordination because it allows the electrical designer to review specific conduits, cable trays, or lighting paths in context without manually adjusting view boundaries.
In contrast:
Default 3D View (Option B) shows the entire model.
Scope Box (Option C) controls view extents in 2D views or view templates, not instant isolation.
Section Box (Option D) is manually adjusted within an existing 3D view but does not automatically generate a cropped view around selected elements.
Therefore, the Selection Box is the correct and most efficient tool for this task.
